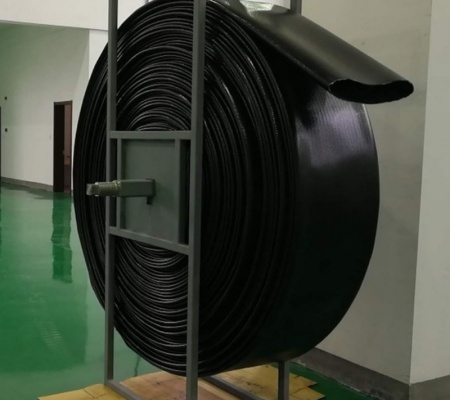

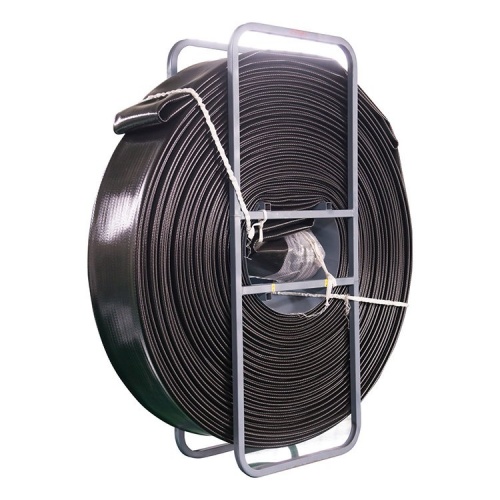

16 Inch TPU Layflat Hose

16 inch TPU layflat hose is a TPU layflat hose used in a variety of applications, includes irrigation, firefighting, industrial dewtering, oil and gas.

16 Inch TPU Layflat Hose

Description：

  16 inch TPU  layflat hose is a TPU layflat hose used in a variety of applications, includes irrigation, firefighting, industrial dewtering, oil and gas. Its large diameter allows for a high volume of water flow, making it ideal for quickly moving large amounts of water over long distances. The layflat design allows for easy storage and transportation, as it can be rolled up when not in use. Made from strong materials TPU, the 16 inch layflat hose is built to withstand rough conditions and heavy use. Overall, this hose is an essential piece of equipment for any operation that requires the efficient and effective movement of water.


Construction：
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters：
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features：
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application：
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing


Specifition：

ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410 1230 2.28 3.40
6″ 152 154-157 0.216 5.50 610 1830 2.14 3.20
8″ 204 204-207 0.149 3.80 200 600 1.94 2.90
8″ 204 204-207 0.157 4.00 250 750 2.28 3.40
8″ 204 204-207 0.165 4.20 300 900 2.35 3.50
8″ 204 204-207 0.165 4.20 410 1230 2.68 4.00
10″ 254 256-259 0.165 4.20 200 600 2.68 4.00
10″ 254 256-259 0.177 4.50 250 750 3.02 4.50
10″ 254 256-259 0.197 5.00 300 900 3.69 5.50
12″ 306 306-311 0.165 4.20 150 450 2.81 4.20
12″ 306 306-311 0.197 5.00 200 600 3.48 5.20
14″ 356 356-360 0.189 4.80 150 450 4.36 6.50
16″ 406 406-410 0.197 5.00
