Thermoplastic Polyurethane Layflat Hose



Thermoplastic Polyurethane Layflat Hose is a flexible hose made of thermoplastic polyurethane. It is designed to be lightweight and easy to handle, yet durable enough to withstand various harsh environments.

Thermoplastic Polyurethane Layflat Hose

Description：

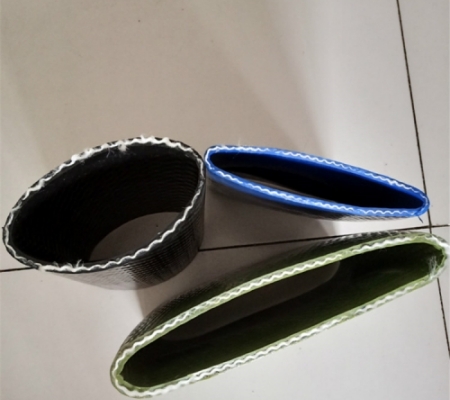

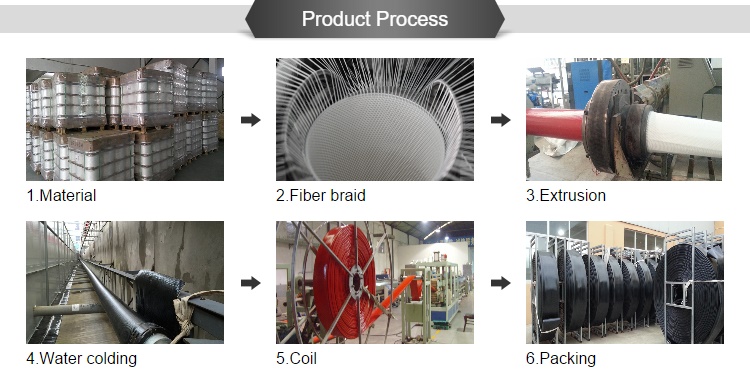

 Thermoplastic Polyurethane Layflat Hose  is a super heavy-duty through-the-weave polyurethane (PU) covered hose.  The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn,with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.Construction
Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters：
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features：
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing
Specifition：


ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410
