Mining Dewatering TPU Layflat Hose

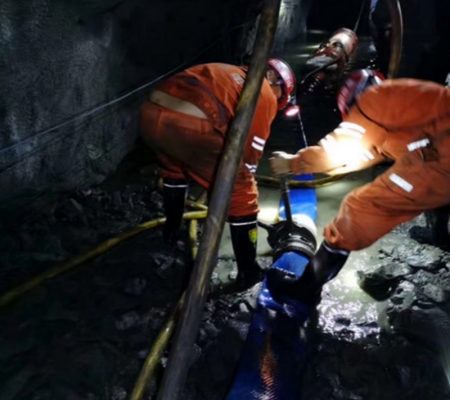

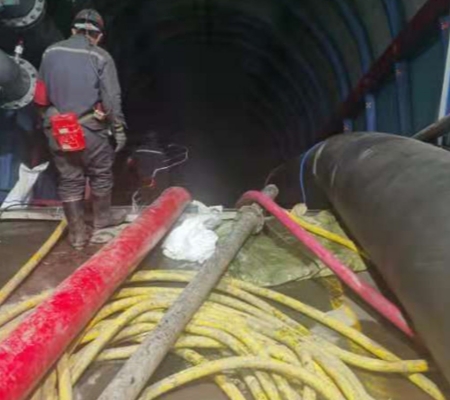

  Mine dewatering hose is a high pressure layflat hose designed to remove large volumes of water water from a mine quickly and safely. Mine dewatering hose is manufactured of high tenacity synthetic yarns and using TPU (thermoplastic polyurethane) thru-the-weave extrusion. It is extra tough, abrasion resistant over aggressive mining terrain.

Mining Dewatering TPU Layflat Hose

Description：

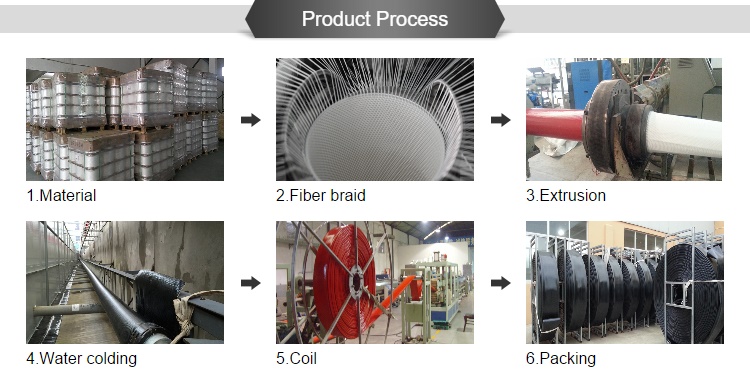

Mining dewatering TPU layflat hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose.  The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn,with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.Construction

Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn
Technical Parameters
Color: Black or as required
Size: 16 inch(DN400)
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features：
High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life
Application：

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Specifition：

ID Tolerance Wall Thickness Service
Pressure 		Minimum
Burst Pressure 		Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2″ 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2″ 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3″ 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3″ 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4″ 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4″ 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4″ 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4″ 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5″ 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6″ 152 154-157 0.126 3.20 150 450 1.27 1.90
6″ 152 154-157 0.149 3.80 250 750 1.41 2.10
6″ 152 154-157 0.165 4.20 300 900 1.68 2.50
6″ 152 154-157 0.228 5.80 410 1230 2.28 3.40
6″ 152 154-157 0.216 5.50 610 1830 2.14 3.20
8″ 204 204-207 0.149 3.80 200 600 1.94 2.90
8″ 204 204-207 0.157 4.00 250 750 2.28 3.40
8″ 204 204-207 0.165 4.20 300 900 2.35 3.50
8″ 204 204-207 0.165 4.20 410 1230 2.68 4.00
10″ 254 256-259 0.165 4.20 200 600 2.68 4.00
10″ 254 256-259 0.177 4.50 250 750 3.02 4.50
10″ 254 256-259 0.197 5.00 300 900 3.69 5.50
12″ 306 306-311 0.165 4.20 150 450 2.81 4.20
12″ 306 306-311 0.197 5.00 200 600 3.48 5.20
14″ 356 356-360 0.189 4.80 150 450 4.36 6.50
16″ 406 406-410 0.197 5.00 100 300 4.56 6.80
16″ 406 406-410 0.212 5.40 150 450 5.23 7.80

Size，working pressure and wall thickness can be customized as required。
