TPU Oil Frac Hose

TPU Extruded Through The Weave Oil frac hose for Long Distance Fracking Water Transfer

TPU Oil Frac Hose



Features

TPU Oil Frac Hose layout
TPU Oil Frac Hose layout
  • Rapid Deployment and Retrieval
  • Thru-the-Weave Extruded Cover and Liner Encapsulating an Inner Woven Reinforcing Jacket
  • High Tensile Polyester Inner Woven Jacket
  • TPU Thermoplastic Outer Cover Providing Excellent Abrasion, UV, and Mildew Resistance
  • TPU Thermoplastic Inner Liner Providing Chemical Resistance (consult ABC chart) and Excellent Abrasion Resistance When Pumping Suspended Solids
  • Dimensional Stability: Designed For Low Elongation Rate and Return to Nominal Diameter After Extended Periods of Pressurization
  • Working Temperature Range: -58°F to 176°F (-50°C to 80°C)

Standards

  • 8″, 10″, 12″ Diameters, >12″ on Request
  • Standard Color: Black, Others on Request
  • Standard Length: 660′, Others on Request
  • Custom Marking and Private Labeling on Request
  • Hose Ends: Uncoupled, Anodized Aluminum V-Style Groove Couplings, Others on Request

Specification

Nominal Size

Working Pressure Burst Pressure Weight Wall Thickness

Tensile Strength

inch

mm psi bar psi bar Lbs./ft. Kg/m Inch mm Lbs

Kg

8″

204+3.0/-0.0

150

10 450 30 2.02 3.01 0.15 3.8 72327 32876
200 14 600 42 2.3 3.23 0.17 4.2 84282

38310

10″

254+3.0/-0.0

150 10 450 30 2.17 3.22 0.15 3.8 107699 48954

200

14 600 42 2.67 3.95 0.17 4.2 115333 52424
12″

305+3.0/-0.0

150 10 450 30 3.04 4.5 0.17 4.2 136147

61885

200

14 600 42 3.45 5.1 0.19 4.7 147112

66869

14″

358+5.0/-0.0

200 14 600 42 4.37 6.5 0.21 5.4 192157 87344
16″ 408+7.0/-0.0 120 8 360 24 5.07 7.5 0.20 5.0 233213

106006

Application

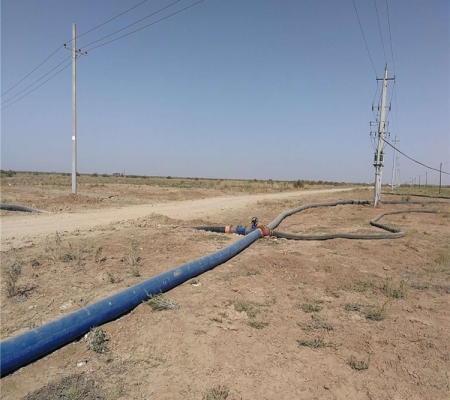

  • Oil and Gas: Long Distance Fracking Water Transfer

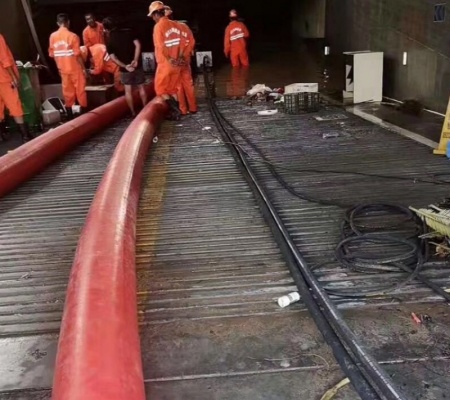

  • Industrial Dewatering: Discharge Pumping
  • Agricultural: Water Irrigation, Manure Slurry Pumping
  • Municipal: Wastewater Bypass

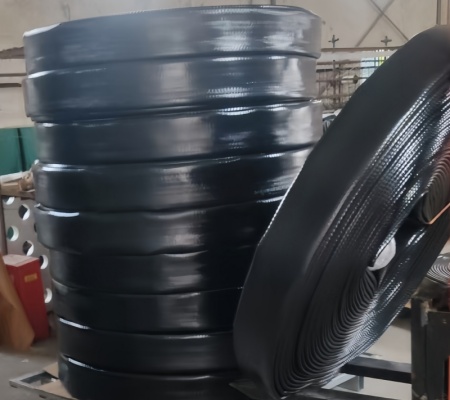

               Details about TPU Oil Frac Hose                                          Details about TPU Oil Frac Hose
