Agricultural Umbilical Slurry Drag Hose

TPU Layflat Umbilical Slurry Hose is one type of super heavy-duty through-the-weave polyurethane (PU/TPU) covered hose. Manureflow hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.


Construction:

Tube: Thermoplastic polyurethane(TPU)

Cover: Thermoplastic polyurethane(TPU)

Reinforcement: High Strength Circular Woven Polyester Or Polyamide

 Accessories:

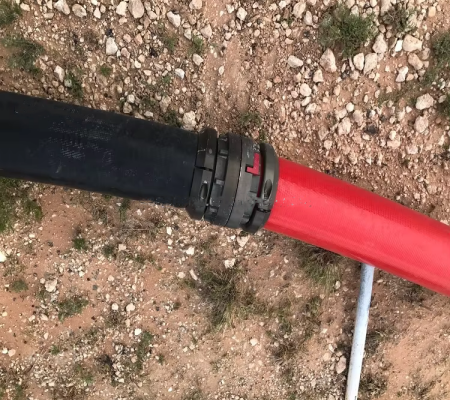

Germany type Storz,American Bolt on style,Victaulic,Camlock is Optional according to the requirement.

 Packing:

Generally the packing would be pallet or steel hose holder,Customized packing is also supported.

 Application:

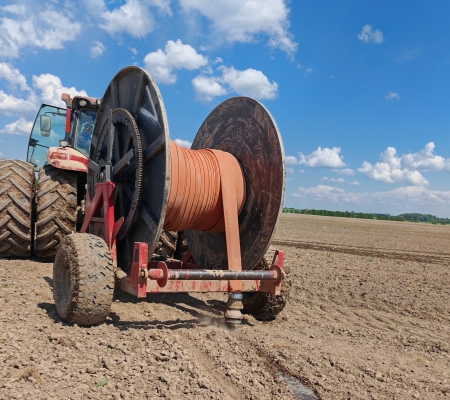

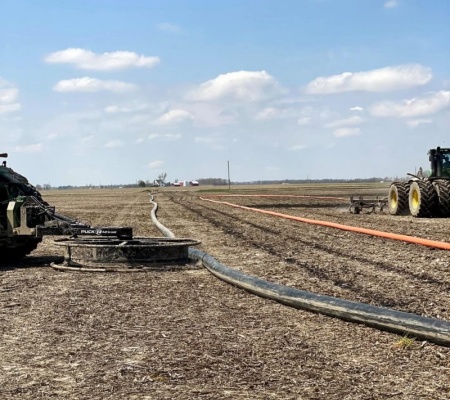

TPU drag hose is designed for distribution of slurry and manure as fertilizer,Delivery of water in self-propelled machinesfor irrigation,

As for the superior abrasion resistrance,the TPU drag hose is designed for distribution of slurry and manure as fertilizer,

delivery of water in self-propelled machines for irrigation.

 Characteristic:

Extra abrasion resistance,oil resistance

Acid and alkali resistance, corrosion resistance

Cold resistance, small flow resistance

Low coil volume for easy handling

Flexible in all weather conditions from -50 to +80 deg C

 Services:

Standard color black,other colors on request

Individual marking available

Binding with international couplings available on request

Other diameters on request

Standard lengths 100m and 200m

 Temperature: -55ºC(-131ºF) to 80ºC(+176ºF)


Agricultural Umbilical Slurry Drag Hose

TPU layflat slurry conveying hose pipe：

ID

Wall Thickness

Weight

Working Pressure

Bursting Pressure

Inch

mm

Inch

mm

lbs/ft

  kg/m

PSI

Bar

PSI

Bar

6

154+2.5

0.17

4.2

1.56

2.33

200

14

600

42

7

178+3.0

0.17

4.2

1.87

2.79

215

15

645

45

8

204+3.0

0.175

4.5

2.3

3.43

215

15

645

45

10

254+3.0

0.18

4.6

3.08

4.59

200

14

600

42

TPU layflat slurry drag hose pipe：

ID

Wall Thickness

Weight

Working Pressure

Bursting Pressure

Inch

mm

Inch

mm

lbs/ft

  kg/m

PSI

Bar

PSI

Bar

4

103+2.0

0.14

3.6

0.94

1.4

190

13

560

39

5

128+2.5

0.16

4

1.21

1.8

190

13

560

39

5.5

141+2.5

0.16

4

1.41

2.1

150

10

450

30

6

153+2.5

0.17

4.2

1.48

2.4

150

10

450

30

7

178+3.0

0.17

4.4

1.92

2.86

135

9

405

28
